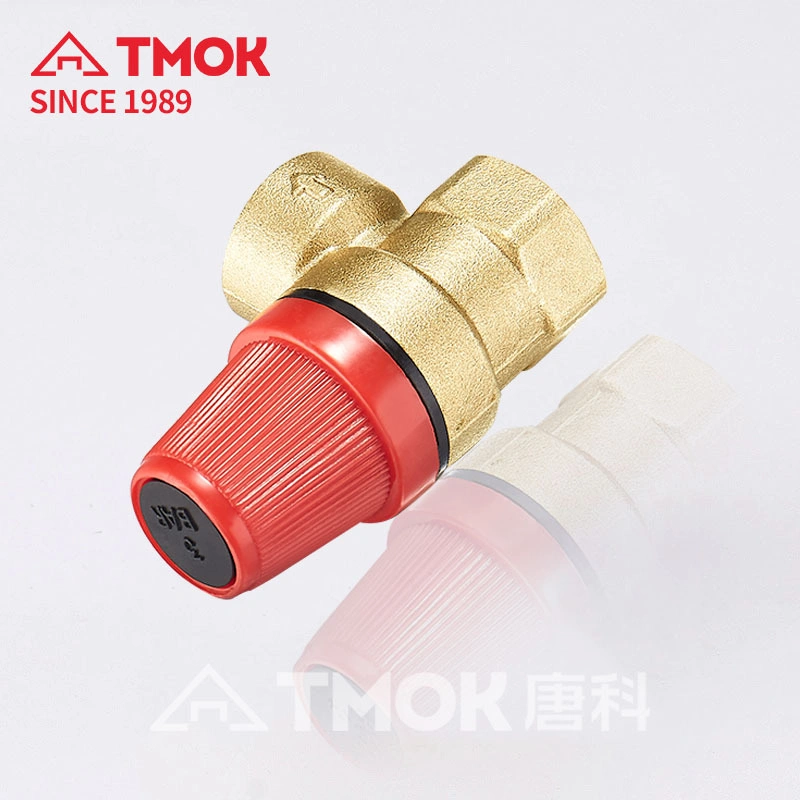

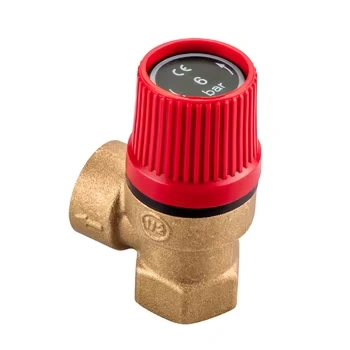

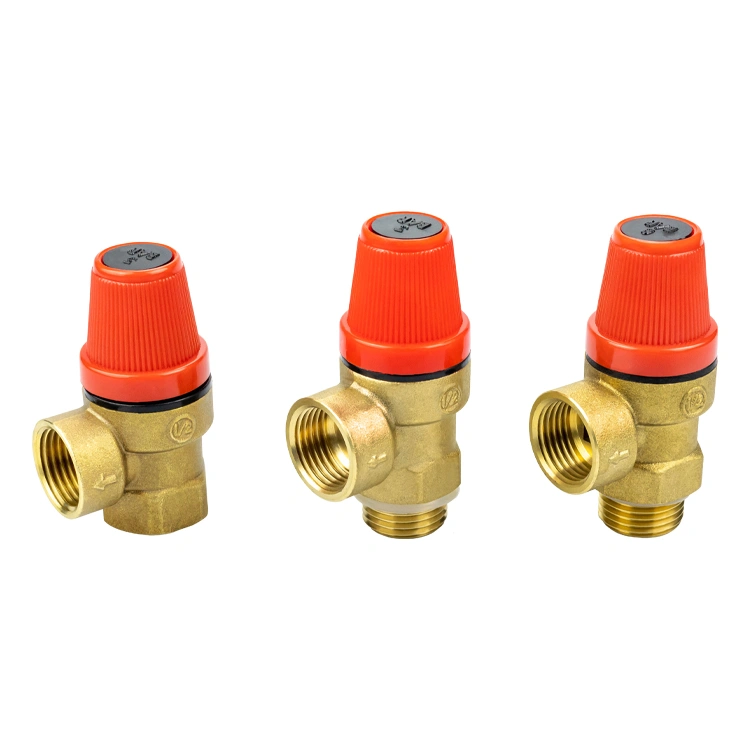

Female Thread Diaphragm Pressure Relief Safety Valve for Hanging Stove
The Brass Safety Valve is a crucial component for system safety. It ensures reliable pressure control, prevents equipment damage, and is essential for efficient and secure operations.
| Size | 1/2"(DN15)-3/4"(DN20) |
|---|---|
| Body material | Brass |
| Connection | Female Thread |
| Temperature | 0-90℃ |
| Pressure | 3/6 Bar |
| Model Number | TK-902 |
| OEM/ODM | Acceptable |
| Warranty | 1 Year |
Technical Info
Product Overview

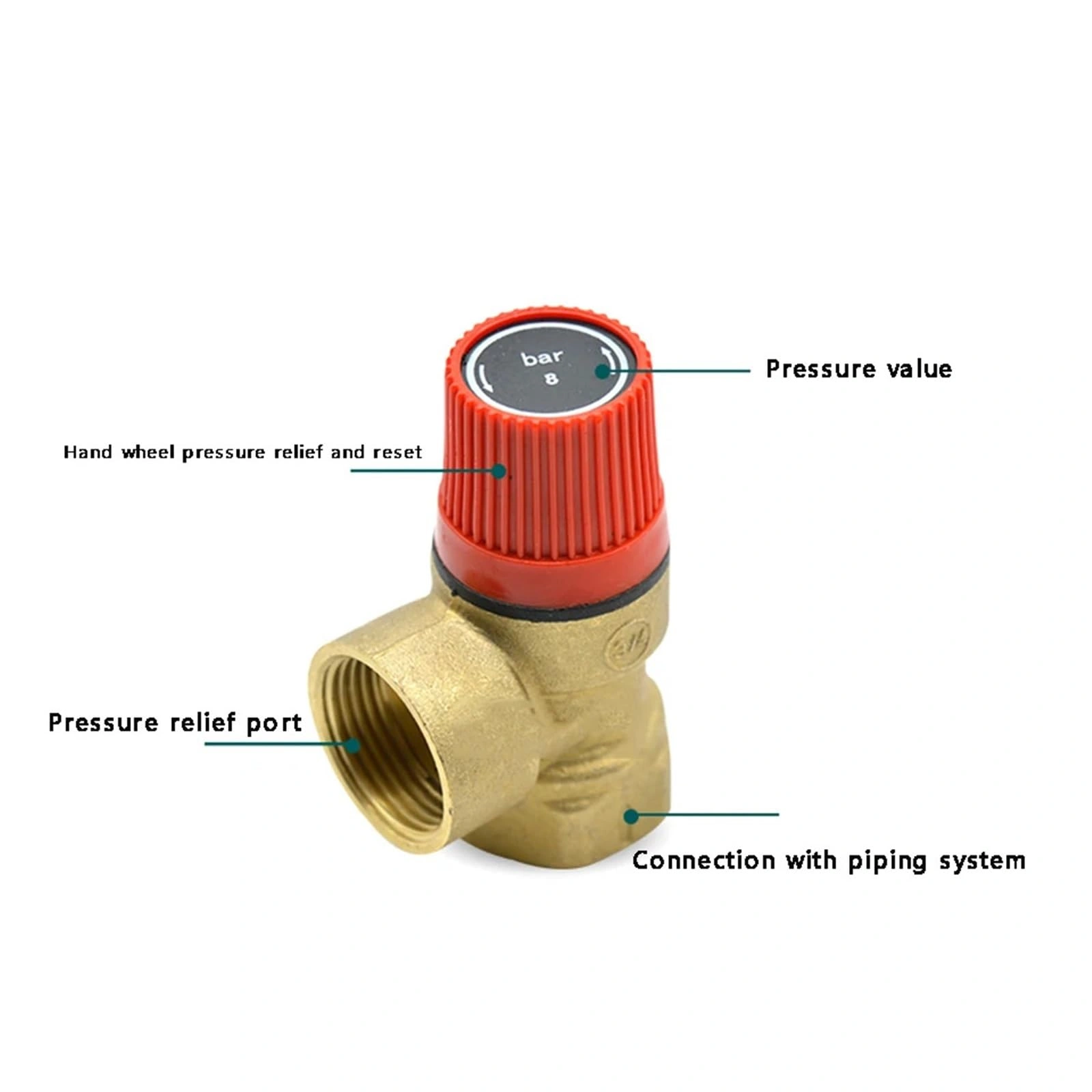

A Brass Safety Valve is an automatic valve for pipeline systems. It opens to release excess pressure when a preset limit is exceeded, preventing damage, and closes automatically when pressure normalizes.
Working Principle

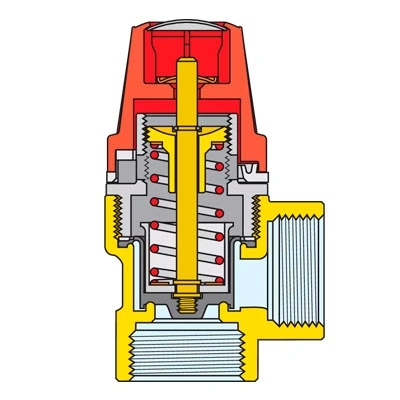

The valve contains a spring-loaded mechanism. Normal pressure keeps it closed. Excessive pressure compresses the spring, opening the valve to release media. When pressure drops, the spring closes the valve again.
Key Features & Applications
- Overpressure Protection* Automatically releases excess pressure to safeguard systems.
- Durable Brass Body* Made from quality brass for corrosion resistance and strength.
- Reliable Seal* Precision engineering ensures tight closure and prevents leaks.
- Compact Design* Robust and space-saving for easy installation.
- Industrial Use* For compressors, boilers, pumps, and industrial pipelines.
- HVAC & Water Systems* Protects heating, cooling, water supply, and firefighting lines.
- Process Industries* Suitable for pressure vessels in chemical, food, and pharmaceutical plants.
